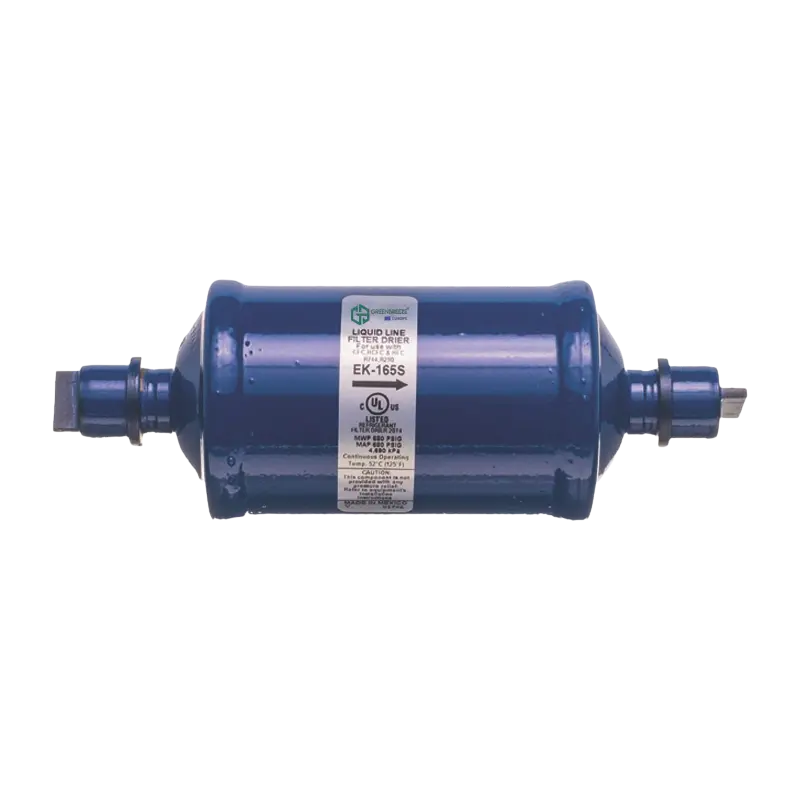

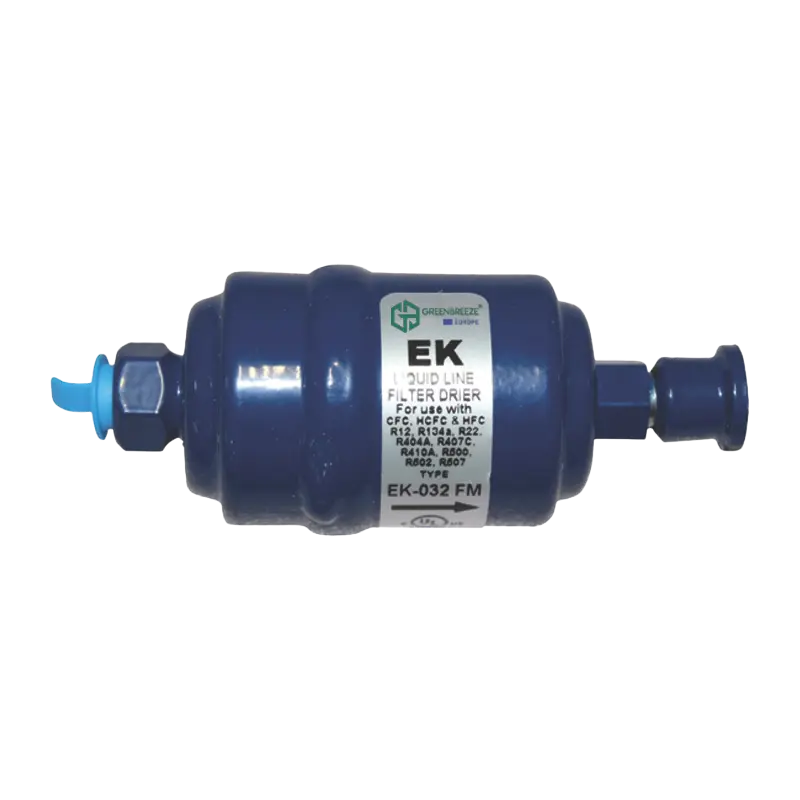

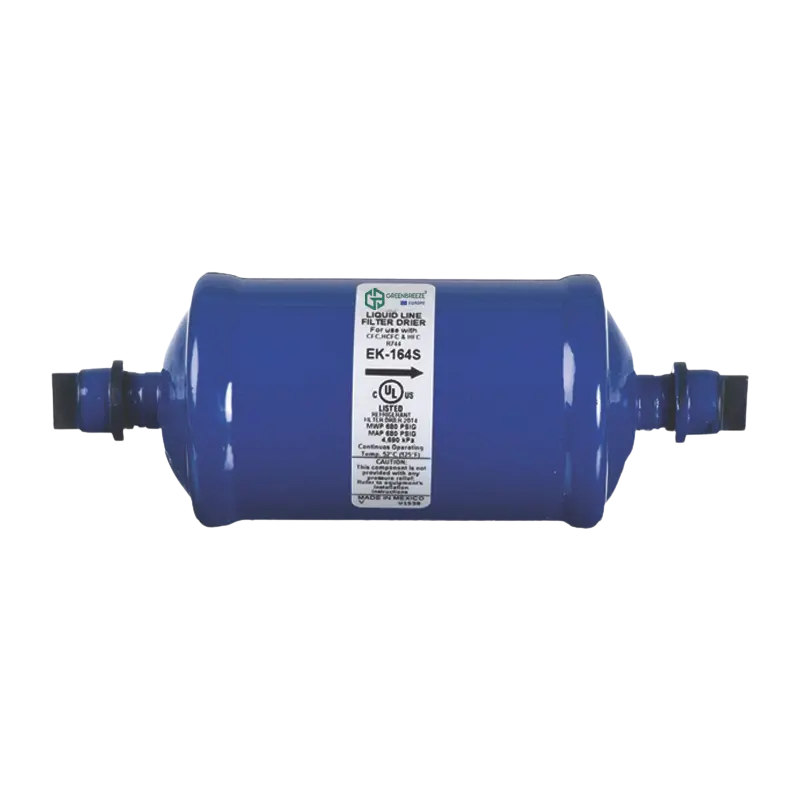

GREENBREEZE LIQUID LINE FILTER DRIER

DESCRIPTION
The GREENBREEZE Liquid Line Filter Drier ensures the long-term efficiency and reliability of your cooling infrastructure by maintaining a clean, moisture-free refrigerant loop. Specially designed to withstand the demanding, high-ambient temperatures of the UAE climate, this filter drier targets the main causes of HVAC system failure: internal corrosion, acid buildup, and system icing.

Utilizing a premium blend of desiccant materials, the drier actively adsorbs water and neutralizes harmful acids generated by motor burnouts or oil degradation. Its solid core design features progressive filtration layers that capture sludge, metal shavings, and solid debris without causing significant pressure drops. Whether for a new installation or a system retrofit, the GREENBREEZE filter drier protects critical components such as thermal expansion valves (TXVs) and compressors from premature wear.

FEATURES
Filtration Capacity: Liquid line filter driers are designed to trap contaminants and debris present in the refrigerant, preventing it from circulating through the system and causing damage to components such as compressors and expansion valves.

Moisture Removal: One of the primary functions of filter driers is to absorb moisture from the refrigerant, preventing it from causing corrosion or icing within the system. The moisture removal capacity varies depending on the type and size of the filter drier.

Contaminant Removal: Filter driers capture contaminants, including dirt, acids, and solid particles, to maintain the cleanliness and efficiency of the air-conditioning or refrigeration system.

Desiccant Material: Filter driers contain desiccant materials such as molecular sieves or activated alumina, which have a high adsorption capacity for moisture and contaminants.

TECHNICAL SPECIFICATIONS

Model	Connection Size & Type	Compatible Refrigerants	Max Working Pressure	Temperature Range
GB-EK-162	1/4″ SAE Flare	HFC / HCFC / CFC	4.7 Mpa / 680 PSIG	-40 to +70°C
GB-EK-162S-1/4	1/4″ ODF Solder	HFC / HCFC / CFC	4.7 Mpa / 680 PSIG	-40 to +70°C
GB-EK-162-3/8	3/8″ SAE Flare	HFC / HCFC / CFC	4.7 Mpa / 680 PSIG	-40 to +70°C
GB-EK-162S-3/8	3/8″ ODF Solder	HFC / HCFC / CFC	4.7 Mpa / 680 PSIG	-40 to +70°C
GB-EK-162-1/2	1/2″ SAE Flare	HFC / HCFC / CFC	4.7 Mpa / 680 PSIG	-40 to +70°C
GB-EK-162S-1/2	1/2″ ODF Solder	HFC / HCFC / CFC	4.7 Mpa / 680 PSIG	-40 to +70°C
GB-EK-162-5/8	5/8″ SAE Flare	HFC / HCFC / CFC	4.7 Mpa / 680 PSIG	-40 to +70°C
GB-EK-162S-5/8	5/8″ ODF Solder	HFC / HCFC / CFC	4.7 Mpa / 680 PSIG	-40 to +70°C
GB-EK-162-3/4	3/4″ SAE Flare	HFC / HCFC / CFC	4.7 Mpa / 680 PSIG	-40 to +70°C
GB-EK-162-7/8	7/8″ SAE Flare	HFC / HCFC / CFC	4.7 Mpa / 680 PSIG	-40 to +70°C

ORDER GREENBREEZE LIQUID LINE FILTER DRIER ONLINE
Buy GREENBREEZE Liquid Line Filter Driers online at cannelle. store for fast, reliable delivery across Dubai, Abu Dhabi, Sharjah, and all UAE emirates. We provide high-quality components directly to HVAC contractors, MEP fit-out companies, and facilities management teams.

Secure your bulk order today to maintain peak refrigeration efficiency, protect your compressors, and prevent costly AC system downtime.
